Applications
- Controller/transmitter for 3S probes
Description

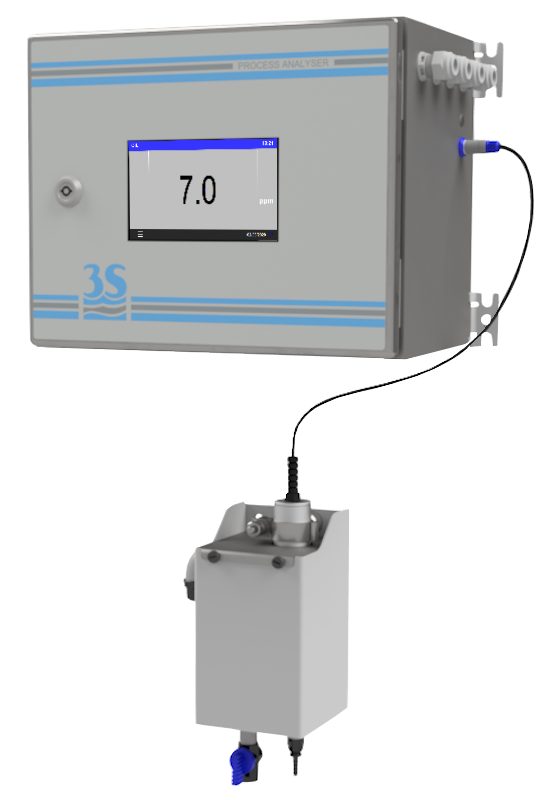

The 3S-PC1000 is a controller/transmitter compatible with all 3S Analyzers online probes. The controller is able to manage the simultaneous analysis of two different probes. To know more about 3S probes, please visit the corresponding page.
Method
The method is based on fluorescence spectroscopy of organic species dissolved in water.
Features
| Measured parameter | OIW | ||
|
Range
|
|||
| Wavelength (ex.) | 280 nm |
| Wavelength (em.) | 300 - 400 nm |
| Demineralized water | Not required |
Reagents and standards
- No reagents required.
- See standard solutions for Oil-in-water analyzer.
The principle of measurement is based on the determination of the absorbance of organic species dissolved in water. The low range version of the probe is indicated for organic loads with a COD(KHPeq) between 0 and 370 mg/l.
Features
| Measured parameter | COD |
| Wavelength | 254 nm |
| Demineralized water | Not required |
Reagents and standards
- No reagents required.
- See standard solutions for UVO LOW analyzer.
The principle of measurement is based on the determination of the absorbance of organic species dissolved in water. The high range version of the probe is indicated for organic loads with a COD(KHPeq) between 0 and 1000 mg/l.
Features
| Measured parameter | COD |
| Wavelength | 254 nm |
| Demineralized water | Not required |
Reagents and standards
- No reagents required.
- See standard solutions for UVO HIGH analyzer.
The probe measure turbidity in water samples via light scattering at 90°.
Features
| Measured parameter | Turbidity | ||
|
Range
|
|||
|
Reproducibility*
|
|||
| Demineralized water | Not required |
| Reference | ISO 7027-1:2016 |
Reagents and standards
- No reagents required.
- See standard solutions for Turbidity analyzer.
The method is based on the spectroscopic determination of chlorophyll through the measurement of the fluorescence at a specific wavelength.
Features
| Measured parameter | Chlorophyll | ||
|
Range
|
|||
| Demineralized water | Not required |
Reagents and standards
- No reagents required.
- See standard solutions for Chlorophyll analyzer.
Technical Specifications
| Model | 3S-PC1000 |
| Sampling Mode | Continuous. |
| Sample | Pressure: Atmospheric Temperature: 5 ‐ 50°C (41 ‐ 122°F) Flow Rate: 80 to 500 mL/min Connection: 6 mm (¼-in.) |
| Drain |
Pressure-free drain Connection: 12 mm (½-in.) |
| Input Streams | 2 |
| Material | Epoxy-coated stainless steel AISI 304 |
| Dimensions (H x W x D) | 300 x 380 x 210 mm (11.7 x 14.8 x 8.2 in) |
| Weight | 10 kg (22 lbs) |
| Power Supply |
Input Voltage: 115 VAC,230 VAC Power consumption: max. 80 W |
| Output signals |
2 x 4-20 mA analog outputs Modbus via RS485,Ethernet |
| Alarms | 2 SPDT programmable voltage-free relays |
| Digital Input | None |
| Ambient Temperature | 5 - 50 °C (41 - 122 °F) |
| Ambient Humidity | 10 - 90 % RH (non-condensing) |
| Protection Grade | IP65 (indoor only, outdoor use possible with external cabinet, not included) |
